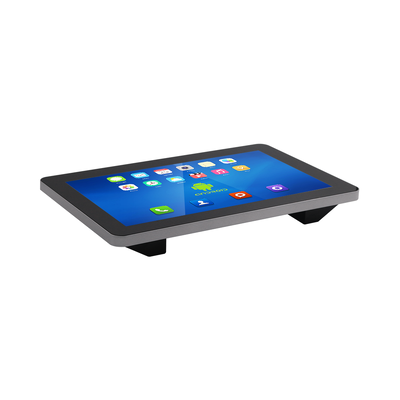

15.6'' Fanless Zero Bezel PCAP Touch Panel PC With Android, High Brightness, Optical Bonding, Anti-glare, Anti-reflective, Anti-finger, Anti-UV
商品の詳細
| 細胞のタイプ/ガラスの表面 | TFT | 原産の決断色 | 1920×1080 |
|---|---|---|---|
| 応答時間 | 25ms | 視野角（典型的な） | 85/85/85/85 |
| 光源 | 50000hours'寿命のLEDのバックライト | メモリ | 2GB; 4GB/8GB オプション |
| ハイライト | 15.6 inch fanless touch panel PC,high brightness optical bonding PC,anti-glare touch panel computer |
||
製品の説明
The ITD 15.6” Multi-Touch HMI Comfort Zero-Bezel Fanless Panel PC is a fully integrated, high-performance solution designed for modern industrial and interactive applications. It is powered by a robust ARM-based processor or x86 Intel® CPU, combined with advanced Projected Capacitive Touch technology, all seamlessly embedded into an industrial-grade LCD panel. Designed with a fanless architecture, this panel PC ensures silent operation, reduced maintenance, and enhanced long-term reliability—making it ideal for harsh, dust-prone, and continuous-operation environments. The absence of cooling fans minimizes the risk of mechanical failure and prevents dust ingress, significantly improving system durability. Featuring a sleek, flat, and true zero-bezel front surface, the device delivers a premium aesthetic while enabling easy cleaning and superior front-panel protection. The PCAP touch technology supports precise 10-point multi-touch, ensuring smooth, intuitive, and reliable user interaction—even in demanding and complex operational scenarios. Engineered for versatility and stability, the ITD Multi-Touch HMI Comfort Fanless Panel PC is perfectly suited for a wide range of applications, including industrial automation, smart kiosks, digital signage, and IoT-based systems.
FEATURES
• True Flat, Zero-Bezel Front Design – Easy-to-clean seamless surface eliminates dust and debris accumulation around edges and corners, ensuring hygienic and low-maintenance operation
• Industrial-Grade Reliability for HMI/SCADA – Flexible, open-platform architecture supports a wide range of industrial applications with stable and long-term performance
• Advanced 10-Point PCAP Multi-Touch – Highly responsive and precise touch performance with support for light-touch operation, enabling smooth and intuitive user interaction
• Optimized Power Efficiency – Fanless architecture combined with energy-efficient design reduces power consumption while maintaining stable performance, making it ideal for continuous 24/7 operation
• Front Panel IP65 / NEMA 4 Protection – Robust sealed front design protects against water, dust, and harsh environmental conditions
• Rugged Aluminum Frame & Steel Rear Housing – Precision aluminum framing provides structural reinforcement along the edges, while the robust steel rear housing ensures excellent strength, heat dissipation, and long-lasting reliability in demanding industrial environment
• Flexible Customization Options – Supports various configurations including CPU platforms, interfaces, brightness levels, and mounting solutions to meet specific project requirements
• Compliance & Certification – CE, FCC, and RoHS certified, ensuring safety, environmental compliance, and global market acceptance
OPTIONALS
| • Anti-Glare / Anti-Reflective, Anti-finger, Anti-UV | • Optical Bonding, High Brightness |
| • Web Camera, Speakers, RFID, NFC, Fingerprint, QR Reader, Thermal Printer, etc. | • WIFI, 4G/5G, Bluetooth, GPS |
| • VESA Mount, Desktop Stand | • DC 24V, DC9-36V, AC100-240V, PoE |
DISPLAY
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 15.6”/16:9 | |
| Active Area/ Pixel Pitch | 344.16(H) ×193.59(V)mm/0.17925 × 0.17925mm | |
| Native Resolution/ Colors | 1920×1080/16.2M | |
| Brightness/ Contrast | 300cd/㎡(500~1500 cd/㎡optional)/1000:1 | |
| Response Time/ Viewing Angle(Typical) | 25ms/85/85/85/85 | |
| Light Source | LED Backlight with 30000Hours’Lifetime |
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588/RK3576 optional) | Intel® Celeron J1900/J6412 2.0GHz | Intel® Core i3/i5/i7 (4th~12th Generation or newer optional) |
| Chipset | Rockchip | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory | 2GB; 4GB/8GB Optional | Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB, DDR4 SODIMM×1(Intel J4125/J6412) | 2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB DDR4 SODIMM ×2 (8th~12th gen.); DDR5 (optional≥12th gen.) |
| Storage | 8GB: 16GB/32GB/64GB Optional | 1×mSATA/1×SATA/1×M.2 | 1×mSATA/1×SATA/1×M.2 |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD Graphics (By CPU) |
| I/O | 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional); 1 × TF Card Support 8~128GB |
1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB
|
1×VGA Output; 1×HDMI Output; 2×USB 3.0; 2×USB 2.0 max. 6; 2×COM max. 6; 1×Realtek ALC662 Line-Out /MIC IN
|
| LAN | 1 x 10/100/1000Mbps Ethernet | 1× 10/100/1000Mbps Ethernet( Dual LAN optional) | 1× 10/100/1000Mbps Ethernet( Dual LAN optional) |
| OS |
GENERAL
| Power | Input Voltage | DC 12V 2.0 |
| Operation/Power Saving | 15~35W | |
| Environment Considerations | Operating Temperature | -10~60℃ (-20~70℃ Optional) |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90% |
