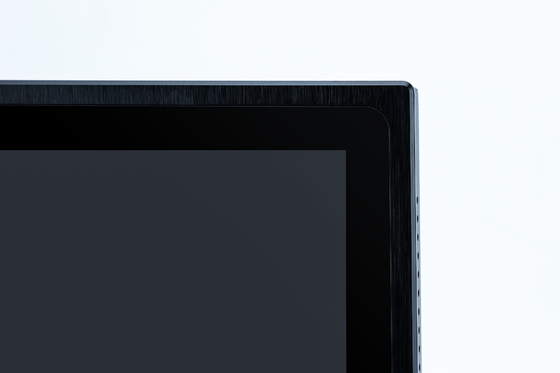

10.1 inch Touch Panel PC featuring multi capacitive touch screen and built in RFID NFC reader for interactive kiosk and attendance machine solutions
商品の詳細
| パネルサイズ | 10.1インチ | 再設定 | 1280*800 |
|---|---|---|---|
| 輝度 | 350cd/㎡(オプションで1000cd/㎡) | 視野角 | 75/75/75/75 |
| CPU | ARM、インテル J900、J6412、J4125、i3、i5、i7 | x86ソリューション1 | Intel®CeleronJ1900/J4125/J6412 2.0GHz |
| X86 溶液 2 | Intel®コアi3/i5/i7（第4〜14世代オプション） | 電源入力 | DC 12V（DC9〜36V入力、AC110〜240V入力オプション） |
| ハイライト | 10.1 inch touch panel PC,capacitive touch screen PC,RFID NFC reader panel PC |
||
製品の説明
10.1 inch Touch Panel PC featuring multi capacitive touch screen and built in RFID NFC reader for interactive kiosk and attendance machine solutions
ITD 7” multi-touch screen HMI comfort zero-bezel panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance ARM Based processor or x86 based Intel Celeron/Core CPU, RFID/NFC reader integrated and Projected Capacitive Touch (PCT or PCAP) Technology in industrial-grade LCD flat panels, with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD multi-touch panel PC specifically suited for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.
Specs:
|
Panel |
Cell Type/Glass Surface |
TFT |
|
Size/ Aspect Ratio |
10.1”/16:10 |
|
|
Active Area/ Pixel Pitch |
216.96(H) ×135.6(V)mm/0.1695 × 0.1695mm |
|
|
Native Resolution/ Colors |
1280×800/16.7M |
|
|
Brightness/ Contrast |
350cd/㎡/800:1 |
|
|
Response Time/ Viewing Angle (Typical) |
25ms/85/85/85/85 |
|
|
Light Source |
LED Backlight with 30000Hours’Lifetime |
SYSTEM
|
Item |
ARM Solution 1 |
ARM Solution 2 |
ARM Solution 3 |
|
CPU |
Octa-Core Cortex-A53 up to 1.5GHz Quad-Core Cortex-A53 1.8GHz |
Quad-Core Cortex-A72 + Quad-Core Cortex-A53, Max Frequency 2.1GHz |
Quad core Cortex-A76 + Quad-core Cortex-A55, Max. 2.4GHz |
|
GPU |
Mali-G52-2EE High Performance GPU |
ARM Mali-G52 MC3 GPU |
ARM Mali-G610 MP4 Quad Core GPU |
|
NPU |
Support up to 1.0T |
Provides 3 TOPS of Computing Power and Supports INT4, INT8, INT16, FP16, BF16, and TF32 Precision Formats. |
Delivers up to 6 TOPS of Computing Power and Supports Mixed-precision Operations (INT4/INT8/INT16), Enabling Network Model Conversion Based on Frameworks such as TensorFlow, MXNet, PyTorch, and Caffe. |
|
Chipset |
Rockchip RK3568/RK3288 |
Rockchip RK3576 |
Rockchip RK3588 |
|
Memory |
LPDDR4X/LPDDR4 2GB standard, optional 4GB/8GB |
LPDDR4X/LPDDR4 4GB standard, optional 8GB |
LPDDR4X/LPDDR4 4GB standard, optional 8GB/16GB |
|
Storage |
eMMC 16G, optional 32GB/64GB/128GB |
eMMC 32G Standard, optional 64GB/128GB |
EMMC 32G Standard, optional64GB/128GB |
|
Decoding Resolution |
Support 1080P/H.265(4K2K) |
Support 1080P/H.265(4K2K) |
Support 1080P/H.265(8K4K2K) |
|
Standard I/O |
1 × HDMI Output; 1 × USB 3.0; 1 × USB 3.0 OTG 1 × TF Card Slot 1 × U-boot Key 1 × Audio Output 1 × RJ45 Port |
1 × HDMI Output; 1 × USB 3.0; 1 × USB 2.0 OTG 1 × TF Card Slot 1 × U-boot Key 1 × Audio Output 1 × RJ45 Port |
1 × HDMI Output; 1 × USB 3.0; 1 × USB 2.0 1 × Type-C 3.0 1 × U-boot Key, 1 × Debug 1 × Audio Output 1 × RJ45 Port |
|
LAN |
1 × 10/100/1000Mbps Ethernet |
1 × 10/100/1000Mbps Ethernet |
1 × 10/100/1000Mbps Ethernet |
|
Wireless |
WiFi, Bluetooth optional |
WiFi, Bluetooth optional |
WiFi, Bluetooth optional |
|
OS |
Android 11, Linux |
Android 14, Linux |
Android 12, Linux |
GENERAL
|
Power |
Input Voltage |
DC 12V Input |
|
Operation/Power Saving |
15W |
|
|
Environment Considerations |
Operating Temperature |
-10~60℃ |
|
Storage Temperature |
-20~70℃ |
|
|
Relative Humidity |
10%~90% (Non-condensing) |
|
|
Order Information |
10.1” Zero Bezel Android Panel PC with PCAP Touch RK3568/ITD101PPCT5KE2-RFID/NFC |
|
|
10.1” Zero Bezel Android Panel PC with Tempered Glass No Touch RK3568/ITD101PPCG1KE2-RFID/NFC |
||
|
10.1” Zero Bezel Android Panel PC with PCAP Touch RK3576/ITD101PPCT5KE3-RFID/NFC |
||
|
10.1” Zero Bezel Android Panel PC with Tempered Glass No Touch RK3576/ITD101PPCG1KE3-RFID/NFC |
||
|
10.1” Zero Bezel Android Panel PC with PCAP Touch RK3588/ITD101PPCT5KE4-RFID/NFC |
||
|
10.1” Zero Bezel Android Panel PC with Tempered Glass No Touch RK3588/ITD101PPCG1KE4-RFID/NFC |
||
